DIN Ethergate Mk2

Name: DIN Ethergate Mk2
SKU: 71031
Price: 260.00 AUD
Availability: InStock

With 2U bi-directional Ethernet to DMX conversion with Art-RDM, or 4U Overdrive Mode for DMX500K (compatible fixtures only), PoE or flexible 12-24v DC input, the DIN Ethergate Mk2 allows for fast deployment of DMX systems and is compatible with a wide range of devices.

21 in stock (can be backordered)

SKU: 71031

Overview
Features
Connectivity
Specifications
Resources

Next-generation Ethernet to DMX/RDM gateway

The DIN Ethergate Mk2 is a reliable DMX node designed for architectural, commercial, or entertainment projects. It supports 2 Universes of bi-directional DMX to DMX512-A conversion with ArtRDM support, and Overdrive Mode enables control of up to 1,024 channels per port at 500Kbps (works only with DMX500K-compatible fixtures). Dual Ethernet ports, one with PoE, allow easy daisy-chaining, while configuration and firmware updates are managed via a localhost web interface. Its slim, 4 DIN-module housing offers flexible mounting options and user-friendly wiring with pluggable terminal blocks.

The configuration is managed through the localhost web interface to simplify commissioning and updates as well as to allow the DIN Ethergate Mk2 to be configured from any computer on your network.

All ENTTEC Ethernet hardware accepts sACN Sync as well as ArtSync to fully synchronize Art-Net data for all output ports and across your installation when receiving Art-Net from the same source.

Power the DIN Ethergate using IEEE 802.3af PoE (Power over Ethernet) or DC 12-24v input. NOTE: when daisy-chained in series, only the first device will receive PoE. Subsequent devices require PoE injector individually to be powered via an Ethernet port.

Featuring a 4-DIN-module electrically-insulated housing, the DIN Ethergate MK2’s slim form includes a DIN-rail clip enabling attachment to a TS35 DIN-rail alongside the option to wall mount the device in any orientation.

Our Ethernet to DMX converter is packed with installer-friendly features including pluggable terminal connectors and inbuilt DMX termination to simplify wiring. Also, a ‘Current Port Buffer’ within the web interface allows live DMX values to be viewed from the web interface to troubleshoot your installation. Upon receiving power, the device is ready to go within seconds.

Output data at a higher transmission rate (500Kbps) to control of up to 2 Universes per port for DMX500K-compatible fixtures. IMPORTANT: DMX500K is incompatible with standard DXM512-A fixtures and does not conform to ANSI E1.11 – 2024. Do not use Overdrive Mode with unsupported fixtures. ENTTEC’s DMX Neon Flex is a compatible fixture supporting Overdrive Mode.

Learn how to connect your DIN Ethergate to a LED strip

PLEASE NOTE: This demonstration features the Mk1 version of the DIN Ethergate, but the basic principles remain the same for the Mk2. Don’t hesitate to get in touch with us if you have any questions – we’re always happy to help!

Specifications

Input voltage	12-24V DC
Max. power draw	7W
Max. heat dissipation	7W
Operating temperature	0°C to 50°C /32°F to 122°F
Operating humidity	5 to 95% (non-condensing)
Data input	eDMX (Art-Net, sACN, ESP or KiNet protocols) via 2 x RJ45 ports
Data output	DMX512-A/RDM (250 Kbps) / DMX500K (500 Kbps) – via 2 x 4-pin Phoenix ports
Max. channels	DMX512-A: 1,024 (2U) / DMX500K: 2,048 (4U)
DMX & RDM timings	break time: 300ms / Mark after break (MAB): 15ms
Art-Net merging	2 sources
Max. refresh rate	44FPS
Network speed	10/100Base-T
Power over Ethernet	IEEE 802.3af
Network configuration	static (default 192.168.0.10) / DHCP
Firmware updates	via web interface
Body material	ABS plastic
IP rating	IP20
LED indicators	forward-facing status LED plus network link/activity (integrated into RJ45 ports)
Mounting options	surface & TS35 DIN-rail mount
Unit dimensions	100.5mm x 72.25mm x 34mm
Unit weight	0.11kg / 0.24lbs
Shipping dimensions	140mm x 140mm x 40mm
Shipping weight	0.16kg / 0.35lbs
Warranty	3-year return to the base manufacturer warranty
Compliance	RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)

Resources

DIN Ethergate Mk2 datasheet

DIN Ethergate Mk2 user manual

DIN Ethergate Mk2 user-facing CAD

DIN Ethergate Mk2 hi-res images

DIN Ethergate Mk2 firmware v1.0

DIN Ethergate Mk2 release notes

DIN Ethergate MK1 archive

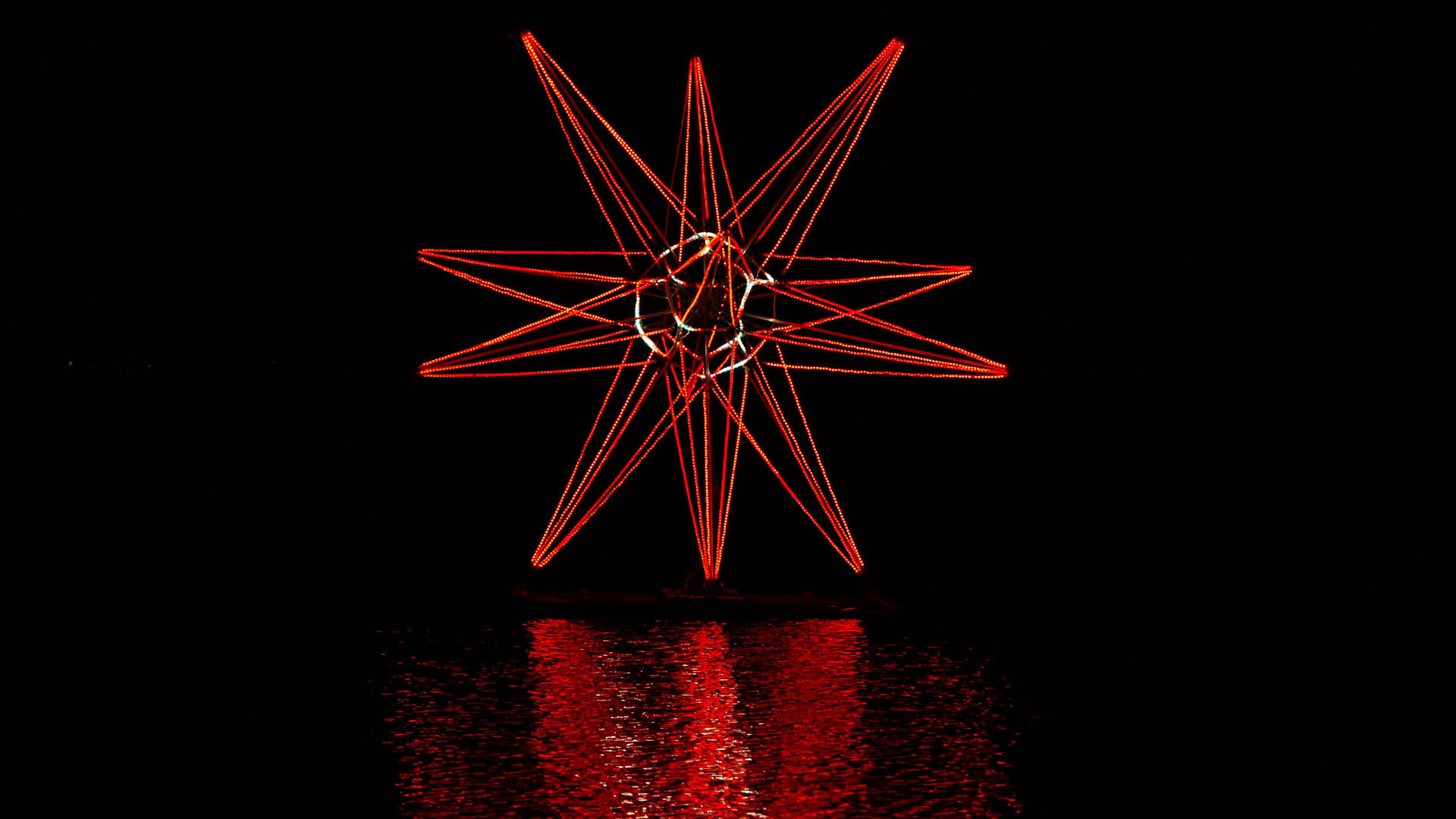

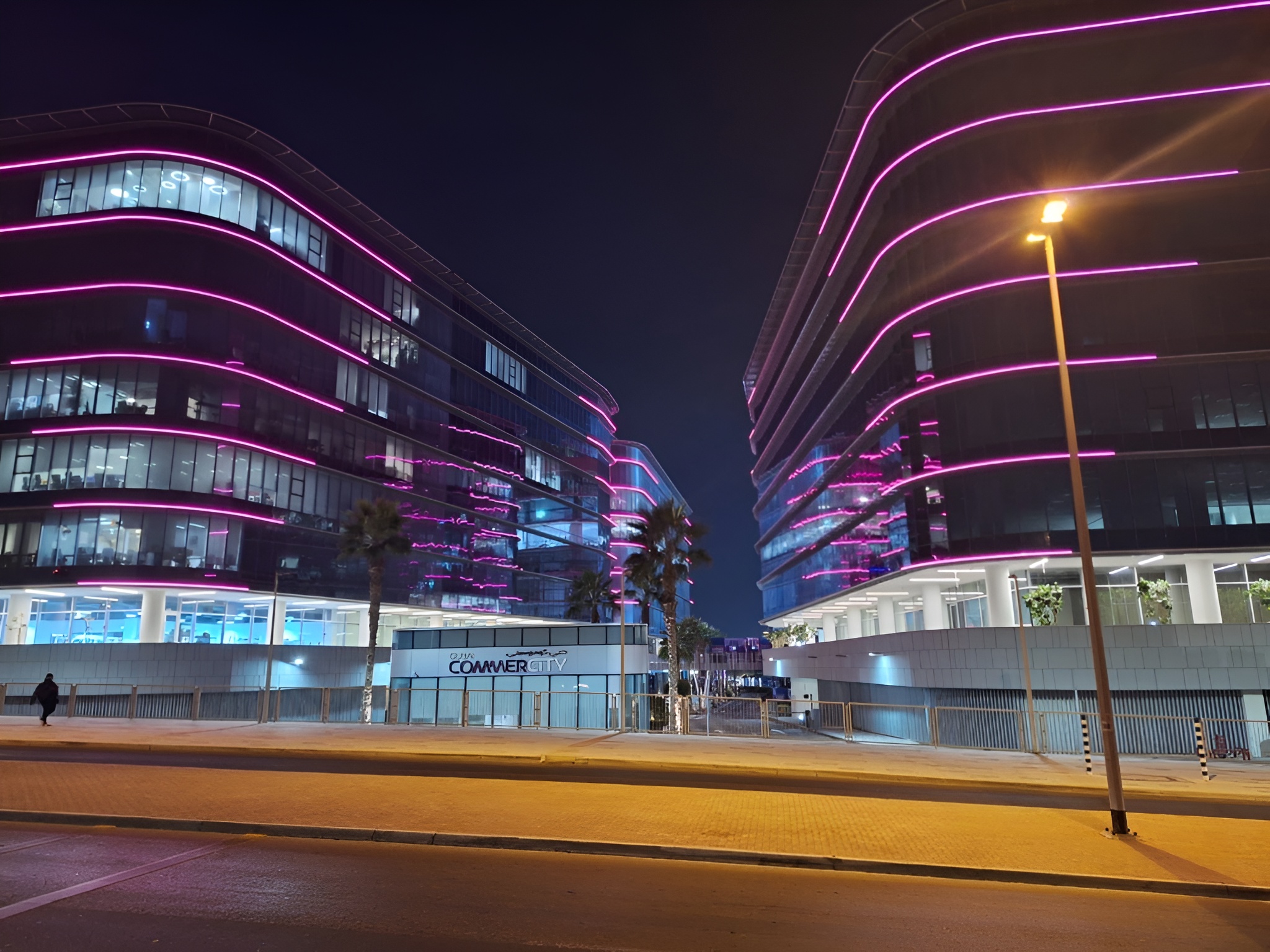

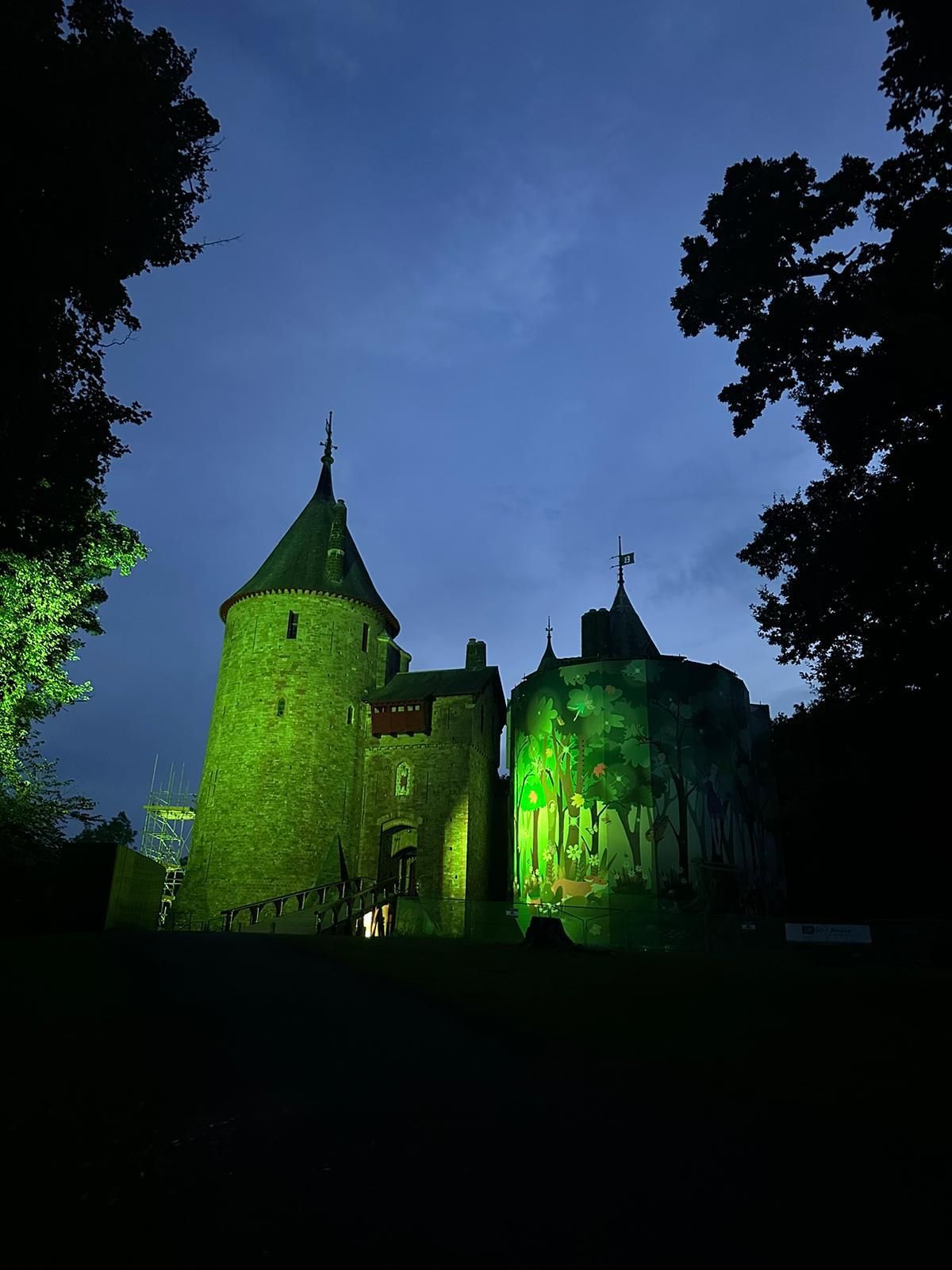

Projects Featuring the DIN Ethergate Mk2
