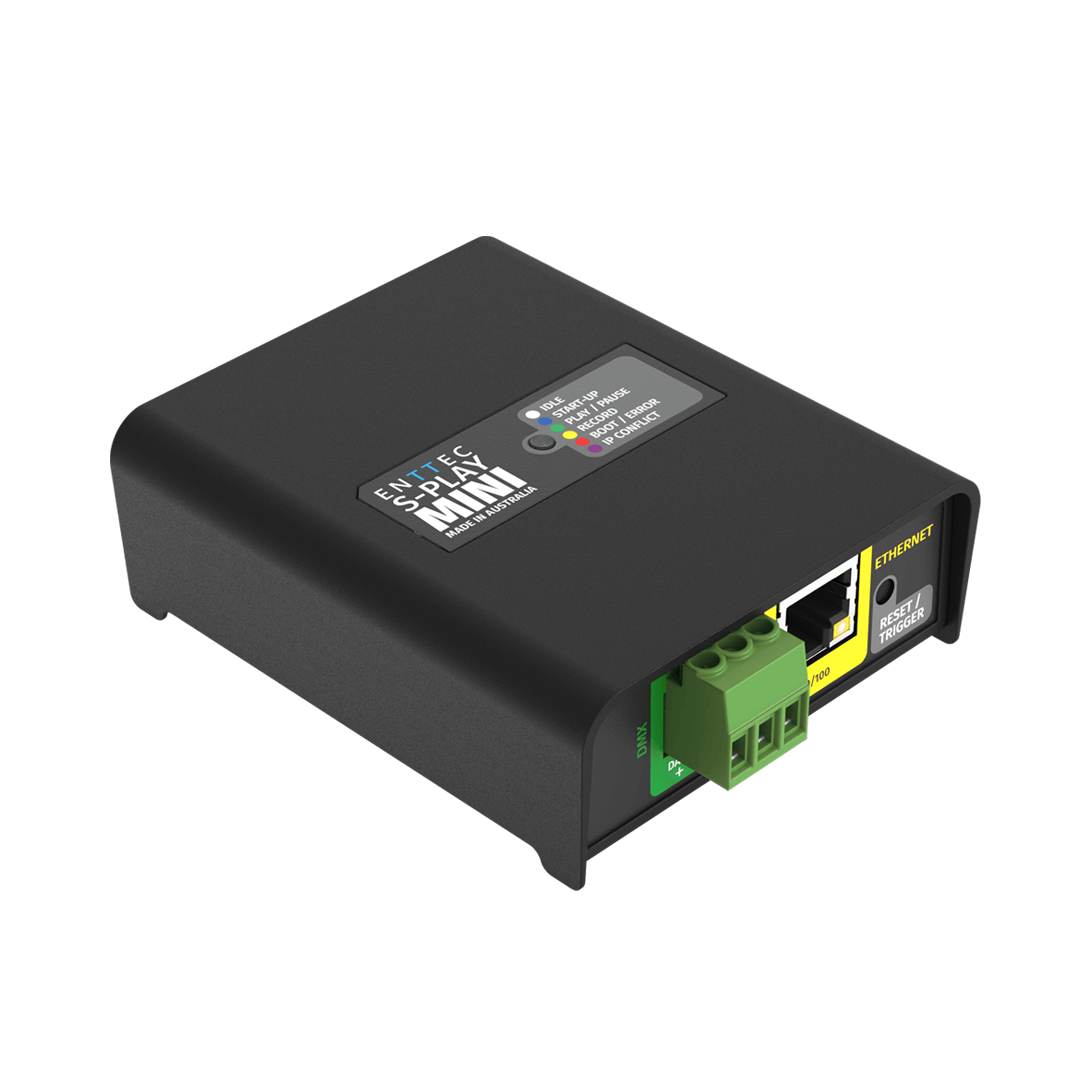

S-PLAY MINI

2-Universe, DIN-rail-mountable solution for the recording, triggering, and activation of not only light shows but video, non-lighting events, and much more.

SKU: 70093

Overview
Features

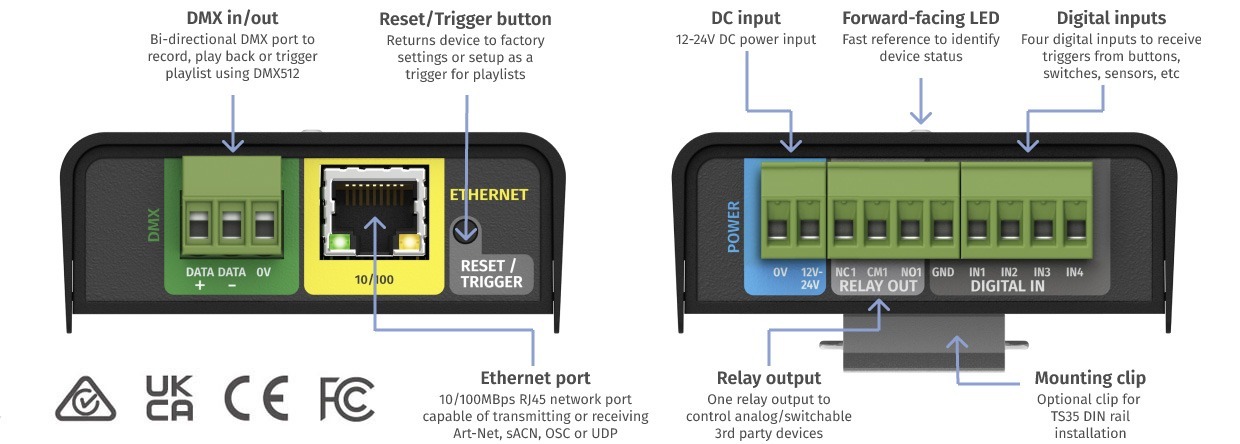

Connectivity
Specifications
Resources

DIN-rail-mountable DMX recorder + smart light show controller.

The S-PLAY MINI is a compact show recorder and playback controller that simplifies professional lighting control by integrating external hardware. Record up to 16 Static/Dynamic/Effect Cues from 2 Universes of Art-Net/sACN or one DMX Universe, or use the onboard pixel effects generator for quick gradient effects. Integrate external devices like buttons, switches, or sensors to trigger 3rd-party devices using contact closures, Art-Net, sACN, DMX, UDP, or OSC. Through the web interface, easily design up to eight playlists by dragging and dropping Cues, Events, and Triggers, with control over fades, play counts, and intensities. Playlists can loop on power-up or be triggered externally, with overlapping playback options.

The S-PLAY MINI is a powerful, professional light show generation engine, featuring multiple ways of recording and creating content for your show.

Record light scenes into static/dynamic cues from external sources such as lighting software via sACN, Art-Net or from physical universes using the DMX port.

Use the internal web-based engine to generate gradient effect cues or simple light scenes by editing DMX values manually.

Create playlists for DMX or pixel light shows using the intuitive timeline editor, and integrate both lighting and non-lighting equipment through multiple protocols and contact closures.

Use these components as building blocks in your playlists to initiate automation events using protocols like OSC, UDP, DMX, Art-Net, and sACN.

Moreover, you can trigger playlists in real-time using external building automation software, iPad Apps, pressure pads, motion detectors, push buttons, and various other methods.

The S-PLAY MINI’s sophisticated and intuitive playlist creation tools include:

– Drag and drop cues, events and triggers into the timeline
– Adjust the duration for static cues and effects
– Fade in/out for all cues
– Control playlist intensity in real-time
– Design your show with a combination of different cues, events and triggers
– Edit, loop, prioritise and group playlists
– Play single or multiple playlists

Use the intuitive web-based creation tool to set up multiple playlists to play back on demand. The customised user interface simplifies commissioning to make playback easier than ever, with multiple installation options to secure your device with peace of mind.

Set up multiple playlists to playback simultaneously in various ways using real–time triggers or even custom user interface for different needs. The S-PLAY MINI optimises the intricate lighting setup within finger reach so you can set and forget.

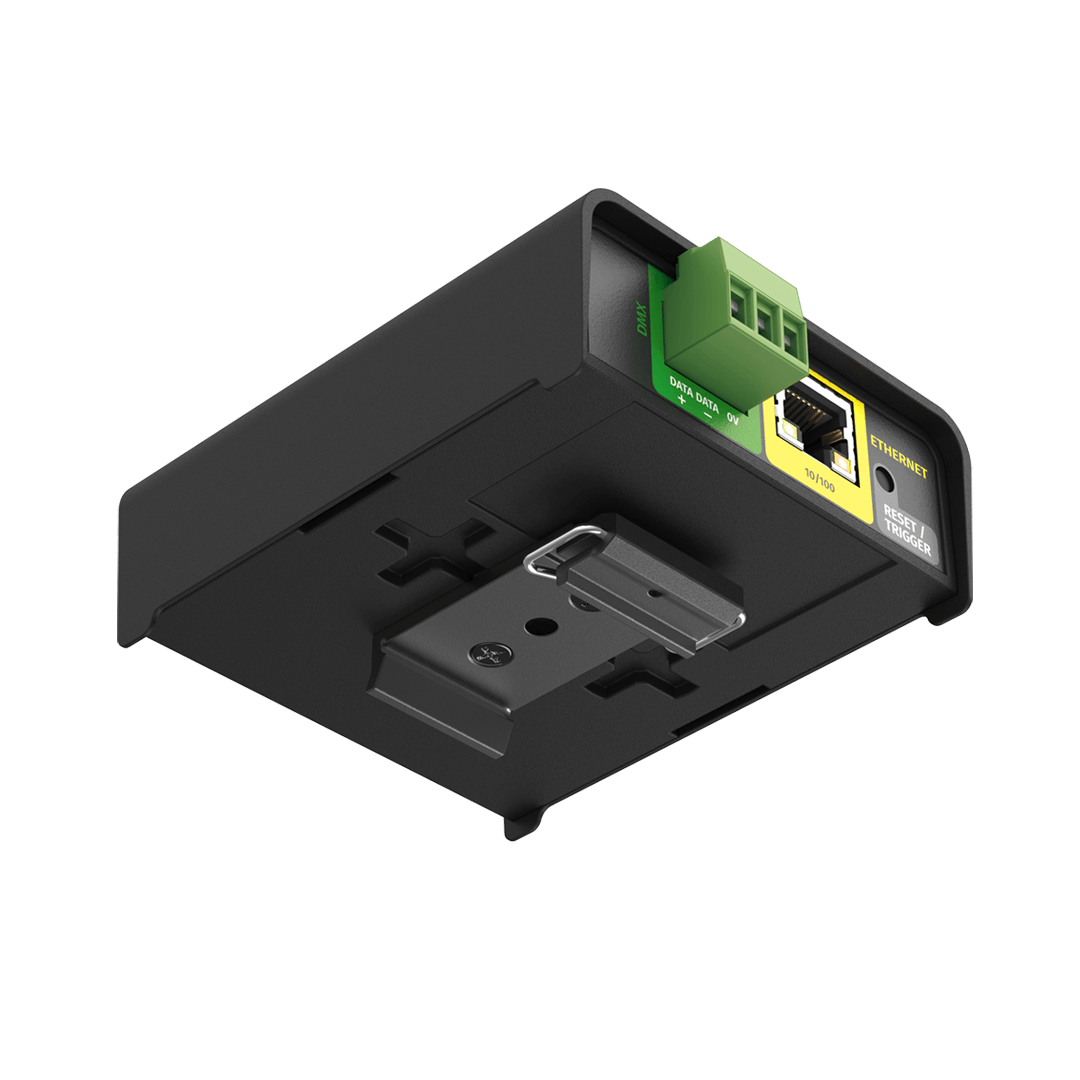

The S-PLAY MINI offers versatile installation possibilities with both DIN-rail and surface-mount options, making it adaptable to a wide range of environments. Whether you’re working in a compact space or a large-scale venue, the S-PLAY MINI can seamlessly integrate into your setup.

Firmware updates, backup, restore and playlist management can be accessed easily on the web interface at the local network.

Get to know the S-Play MINI

Ever wanted to know just how useful a DMX recorder/show controller could be as part of your lighting setup? Then check this video out!

Join Jasmine from ENTTEC, as she takes you through the core features and applications of the S-PLAY MINI, plus how it differs from its bigger brother, the S-PLAY SP1-1.

We’ll also get to see the S-PLAY’s intuitive web interface, and learn how easy it is to map some LED pixel dot lights using the demo version of ENTTEC LED Mapper (ELM) software, then record and store your show on the S-PLAY MINI ready for playback.

Follow this short lesson and you’ll be up and running in no time!

Integrate your S-Play with these popular automation systems

Home Automation
Building Automation Management
Conference Rooms
Façade Lighting
Art Installations
Hotel Lighting
System Control
Hospitality Lighting
Architainment Lighting

Specifications

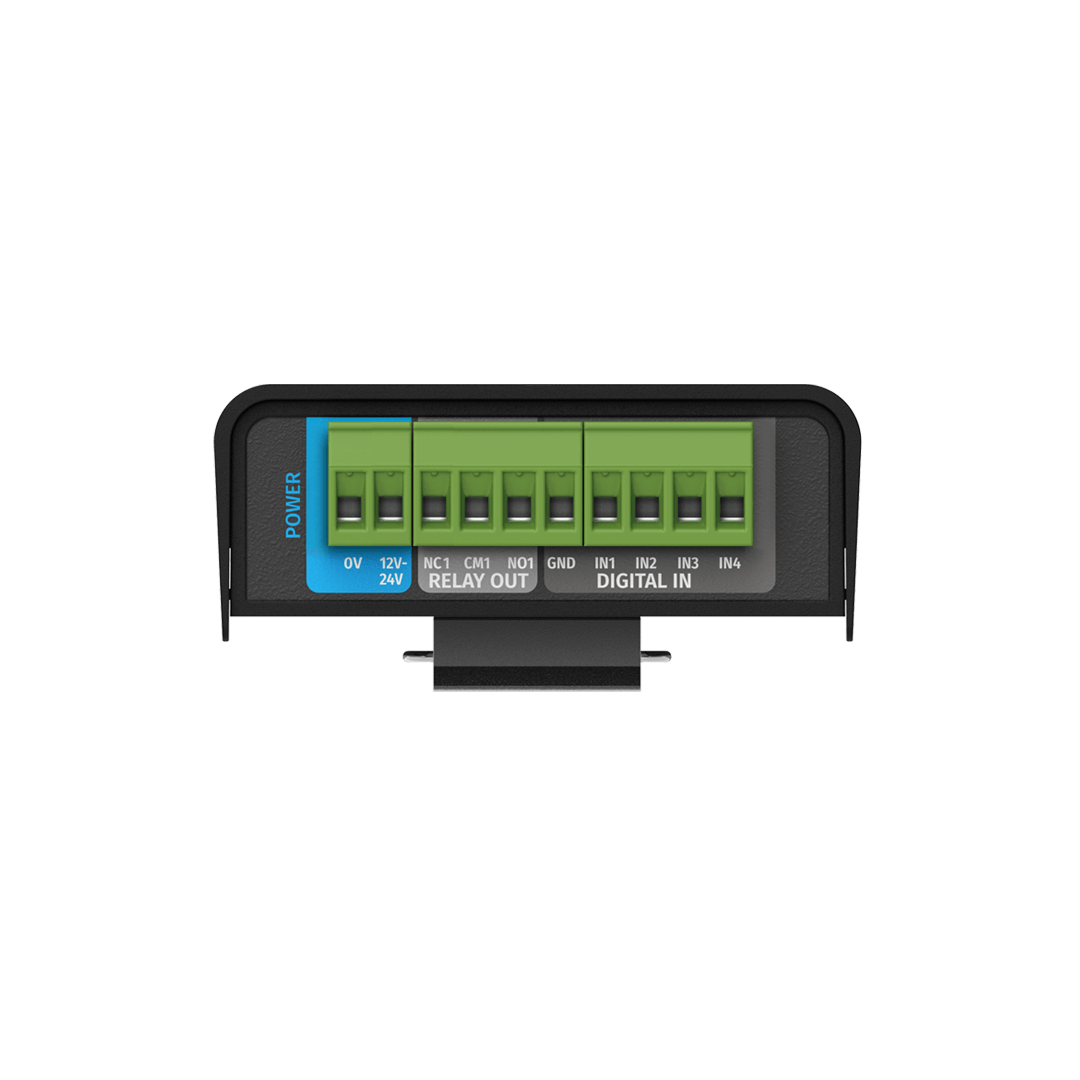

Input voltage	12V DC to 24V DC
Power input	2-pin Phoenix screw terminal
Max power draw	3W

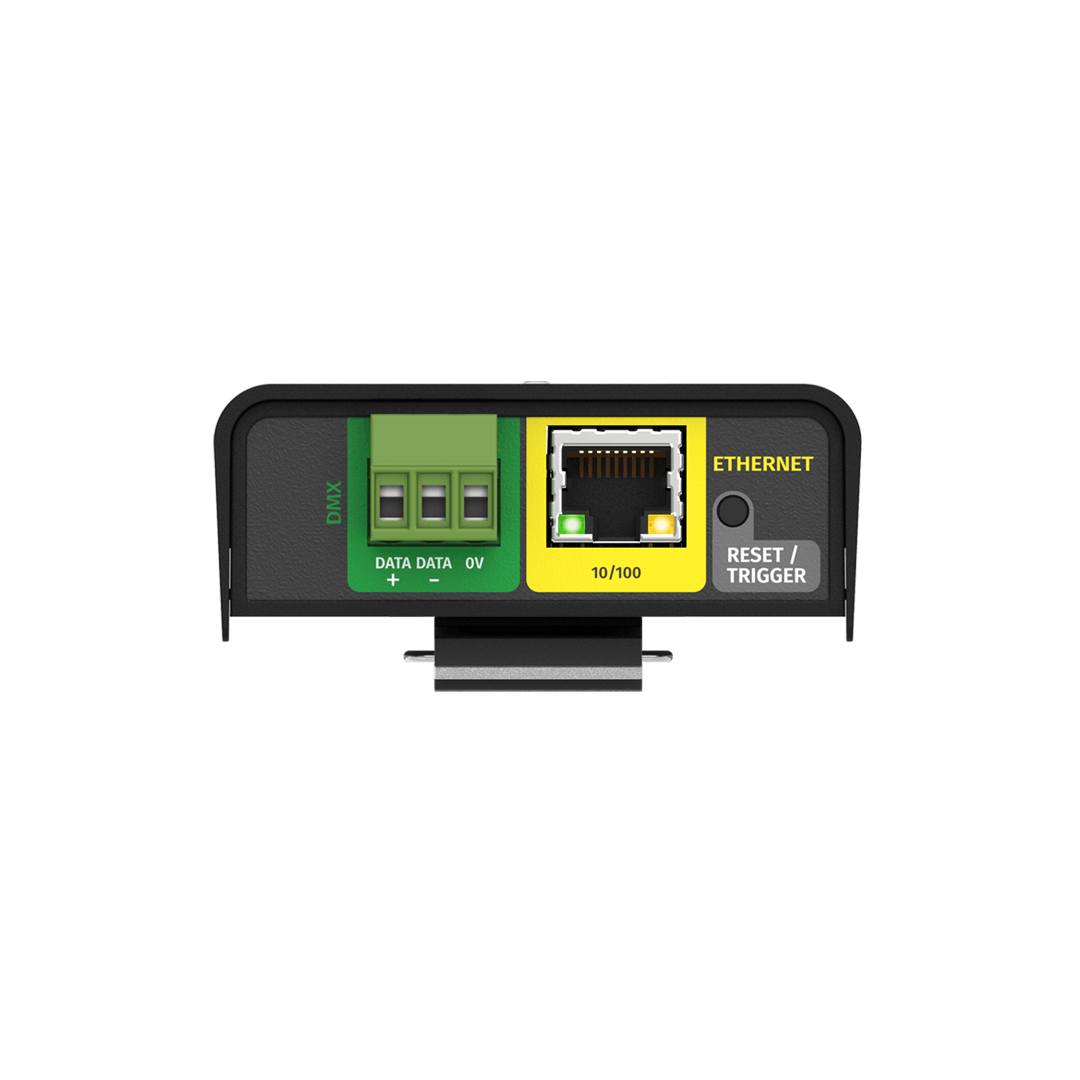

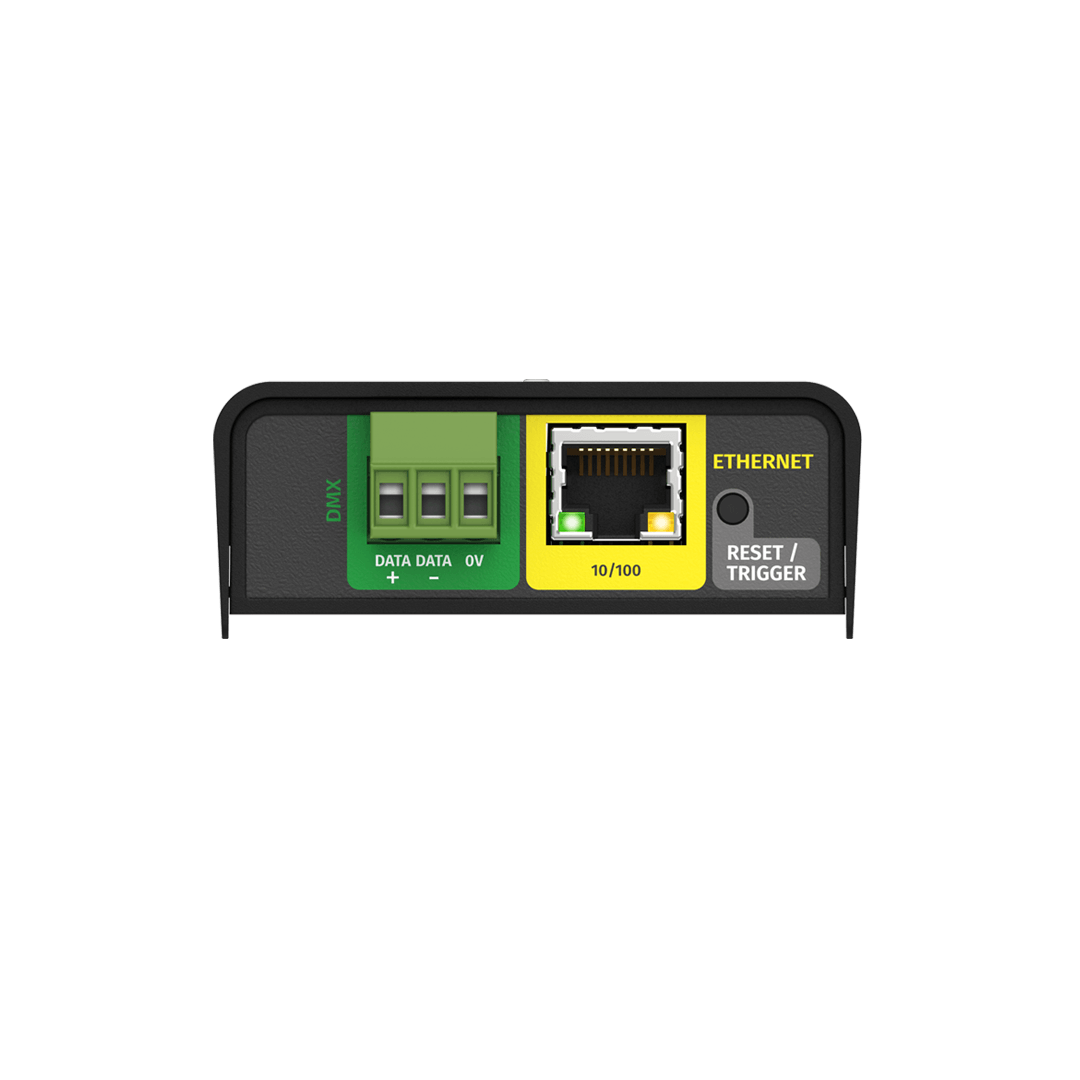

Ethernet port	RJ45
DMX port	Bi-directional 1 x 3-pin Phoenix screw terminal

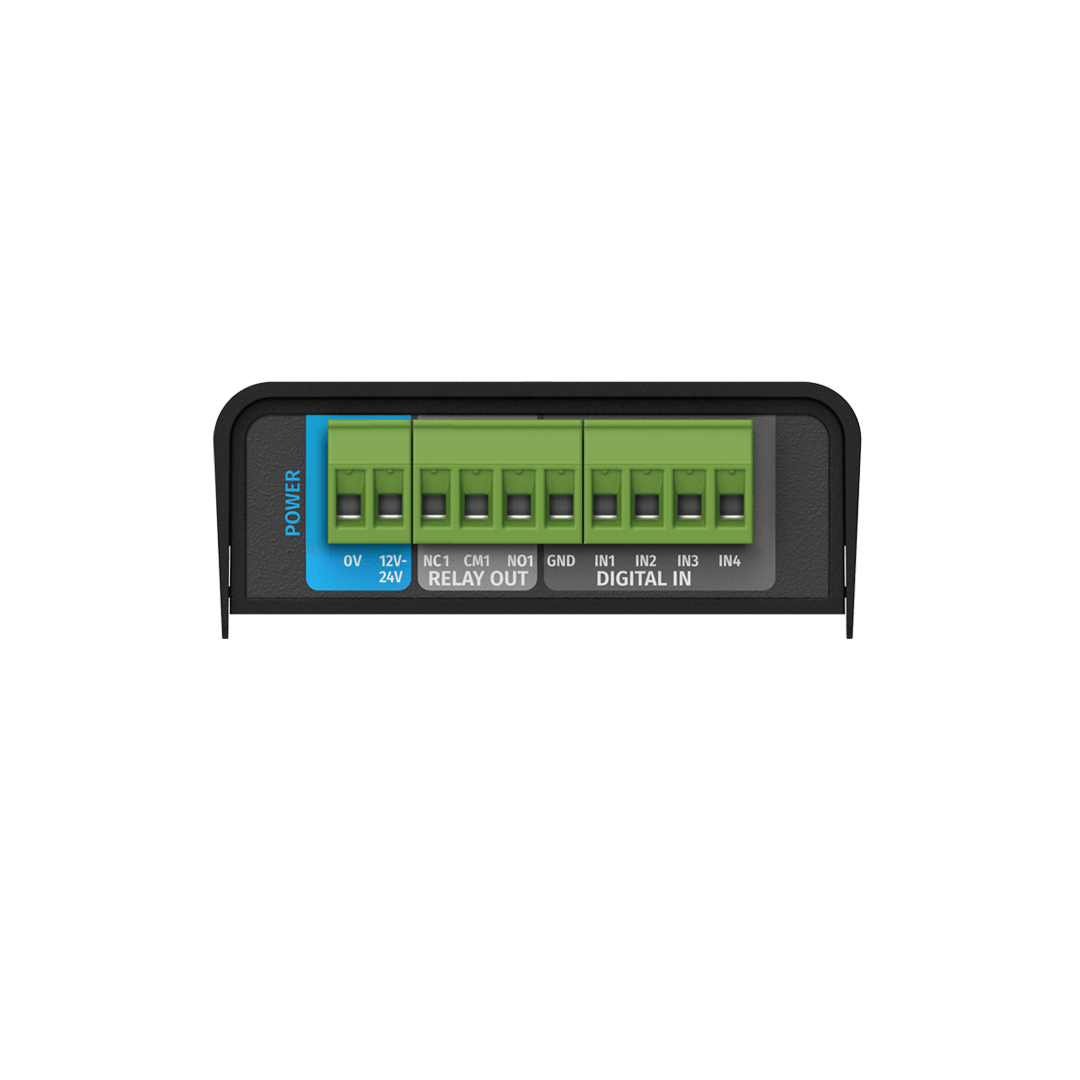

Digital input	4 digital inputs + 1 GND (5-pin Phoenix screw terminal)
Relay	1 x relay (3-pin screw terminal)
Internal show storage capacity	1GB

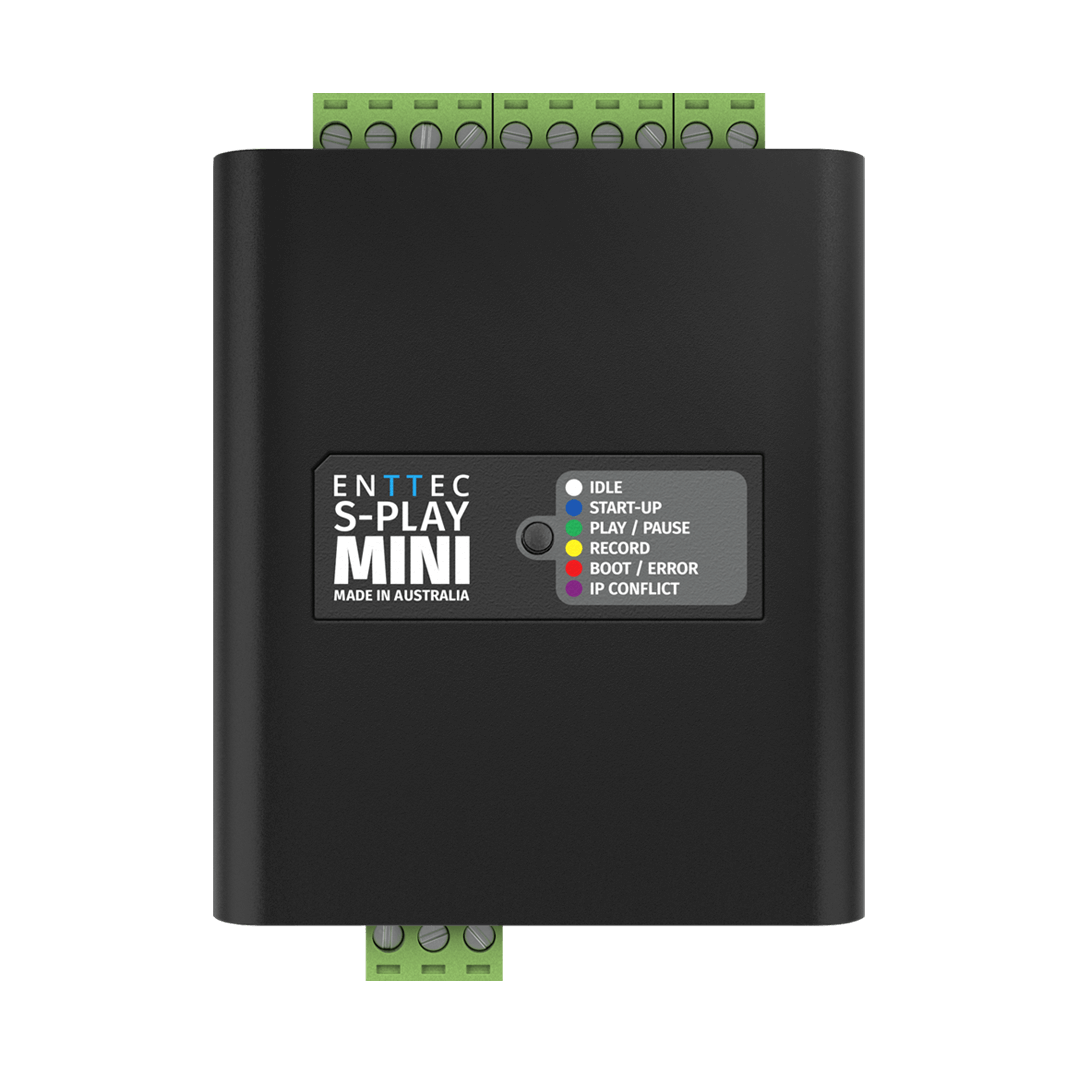

LED indicators	Forward-facing LED indicator + network link/activity (integrated into RJ45 port)
Factory reset	Web interface / reset button

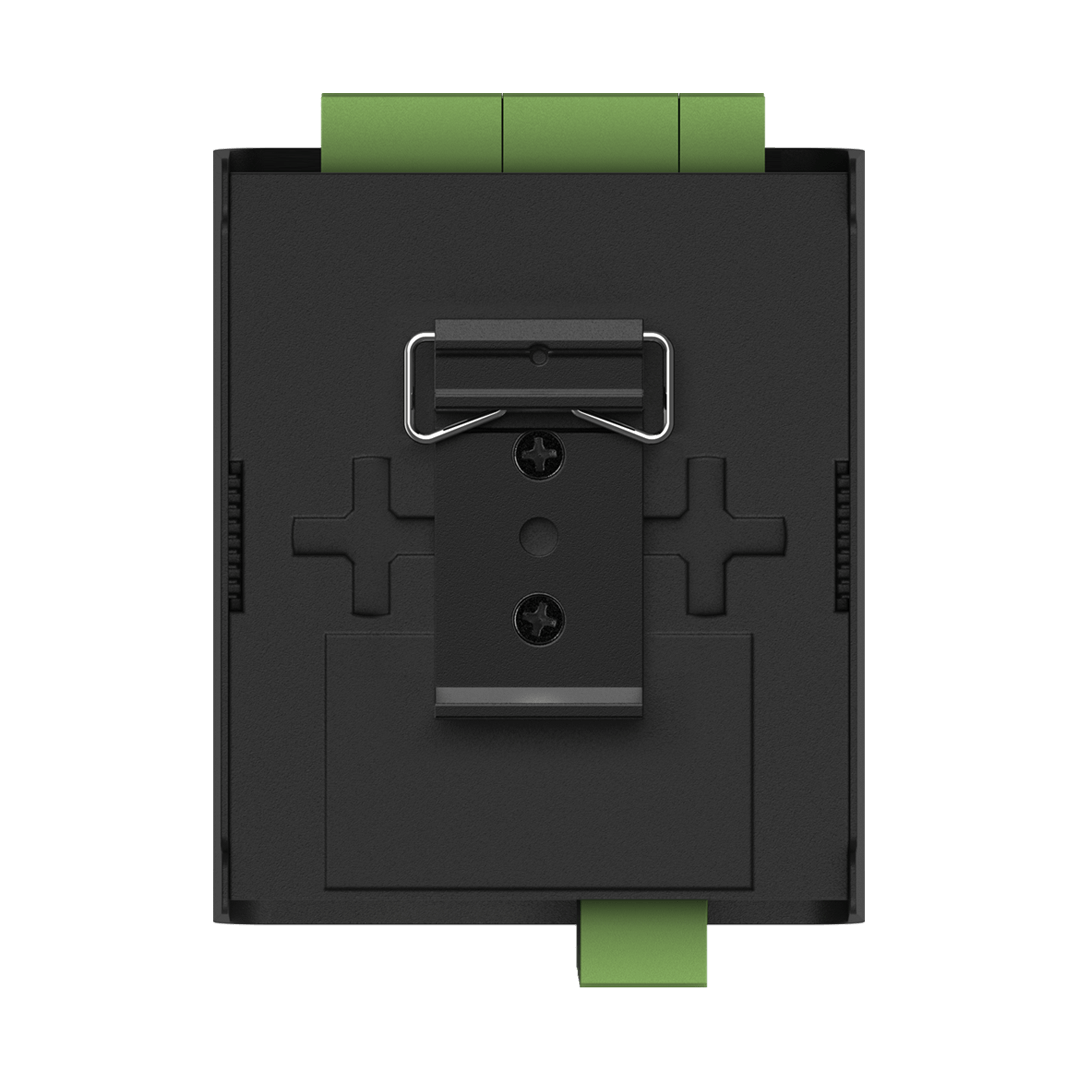

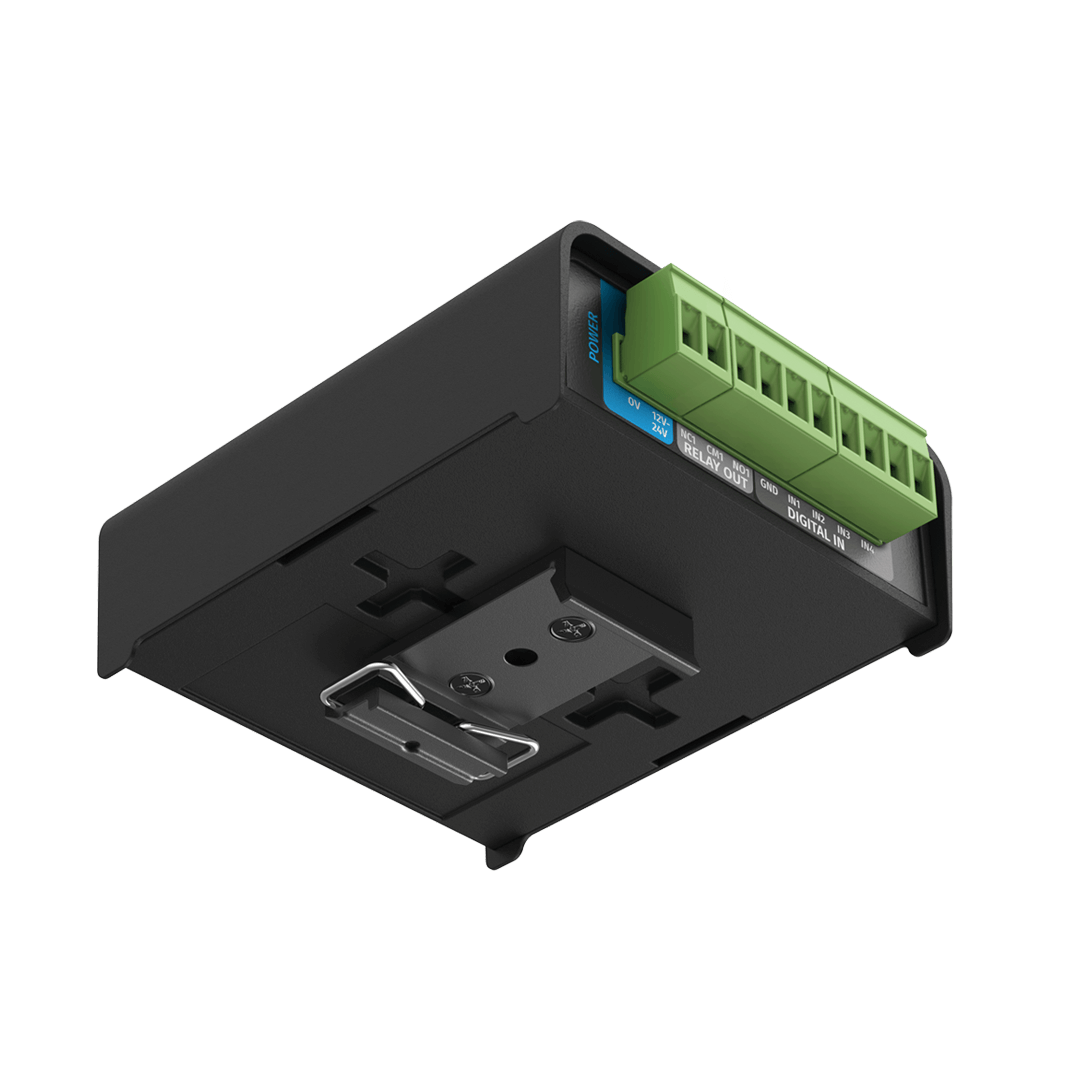

Mounting	Surface & TS35 DIN rail mountable (clips & screws included)
IP rating	IP20
Environmental operating temperature	0°C to 50°C / 32°F to 122°F
Environmental operating humidity	0 to 95% (non-condensing)
Cooling method	Convection
Body material	ABS plastic
Unit dimensions	100.5mm x 72.25mm x 34mm
Unit weight	0.83kg / 0.18lbs
Shipping dimensions	160mm x 140mm x 40mm
Shipping weight	0.16kg / 0.35lbs
Compliance	RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
Warranty	3-year return to base manufacturer warranty

Software

DMX universe playback	1U (512 channels of USITT DMX512-A)
Art-Net / sACN universe playback	2U (1024 channels)
Max DMX refresh rate (FPS)	40
Max playlist count	8
Max cue track per playlist	2
Max Cues (including Static, Dynamic and Effect)	16
Max Triggers	16
Max Events	16
OSC API	Yes

Resources

S-PLAY MINI data sheet

S-PLAY MINI user manual

S-PLAY TouchOSC guide

S-PLAY OSC API

S-PLAY MINI drawing + dimensions

S-PLAY MINI 3D model STEP file

S-PLAY MINI hi-res images (38.9 mb)

S-PLAY MINI firmware v1.0.2

S-PLAY MINI release notes

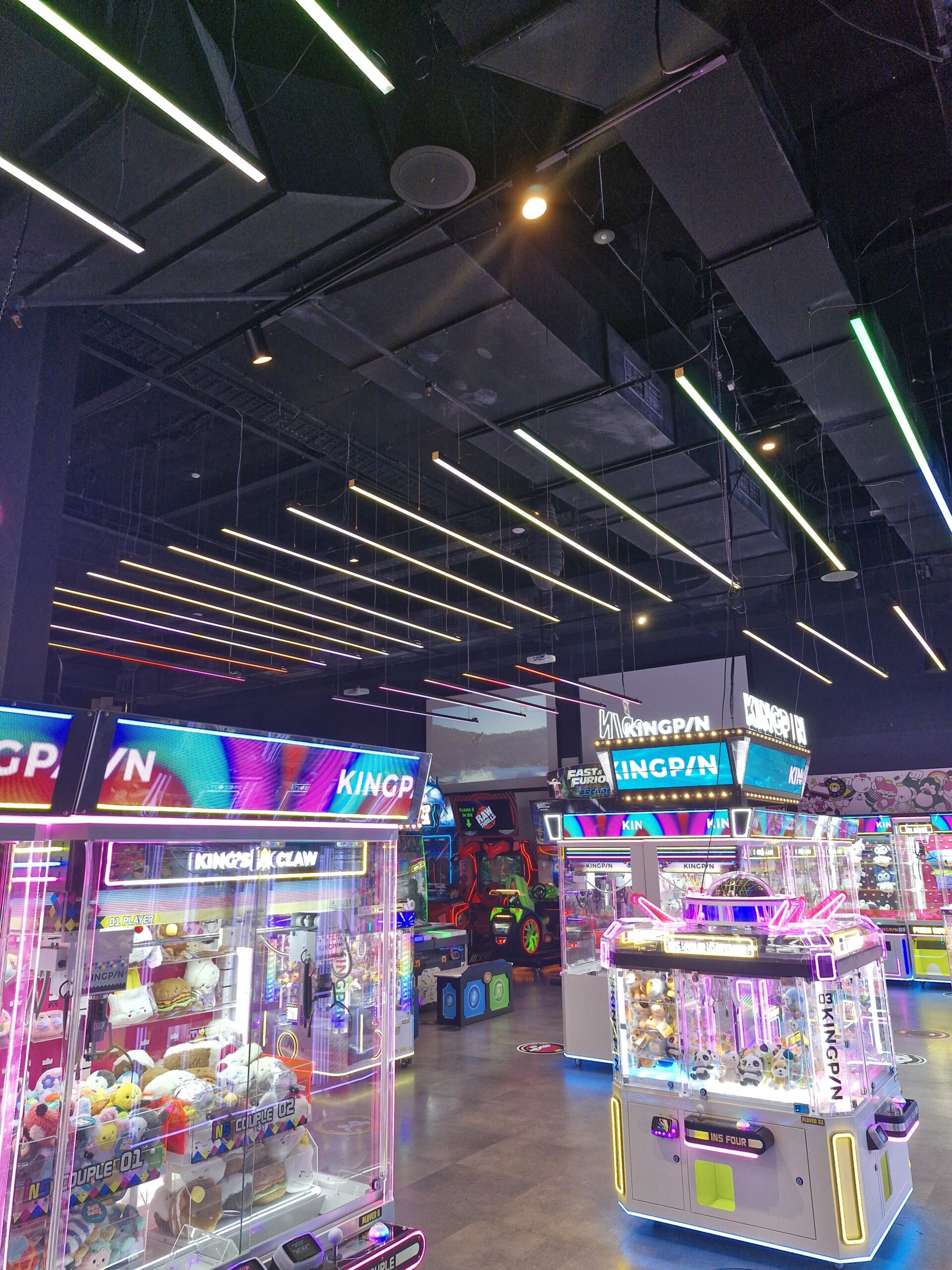

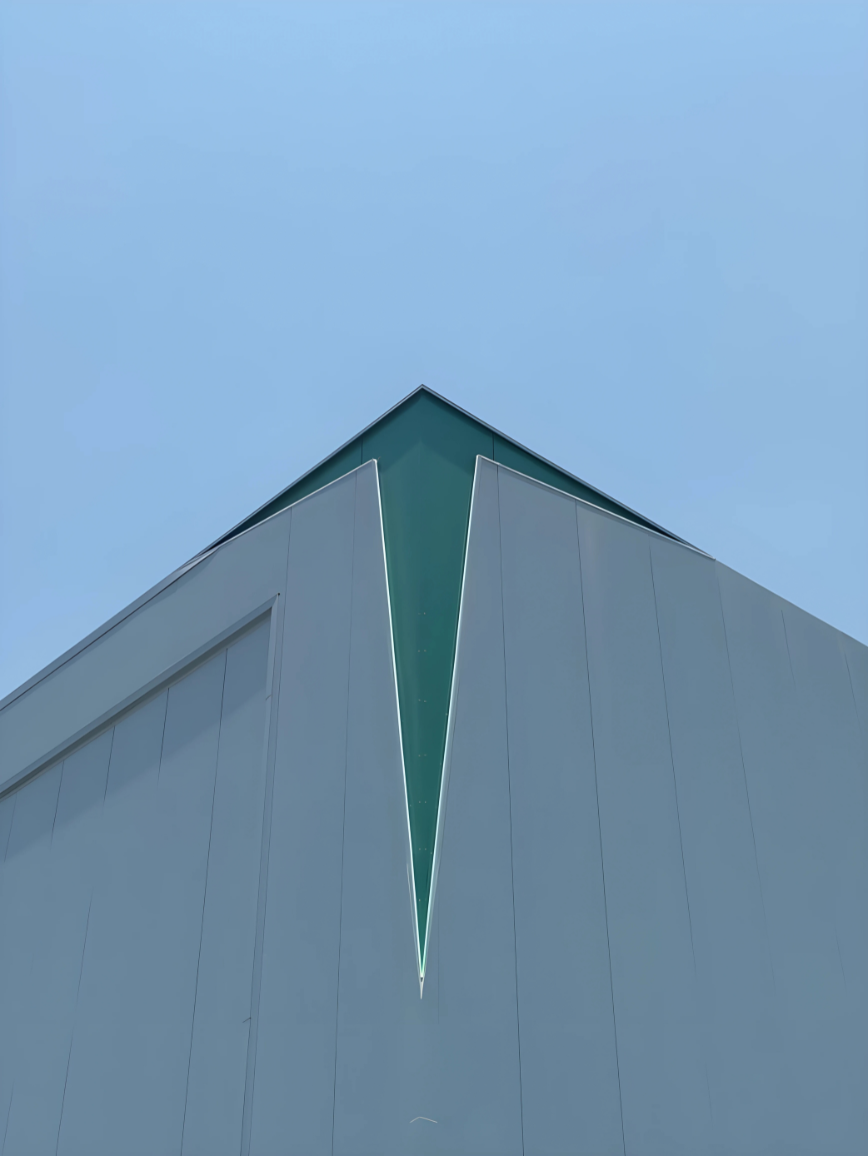

Projects Featuring the S-PLAY MINI
